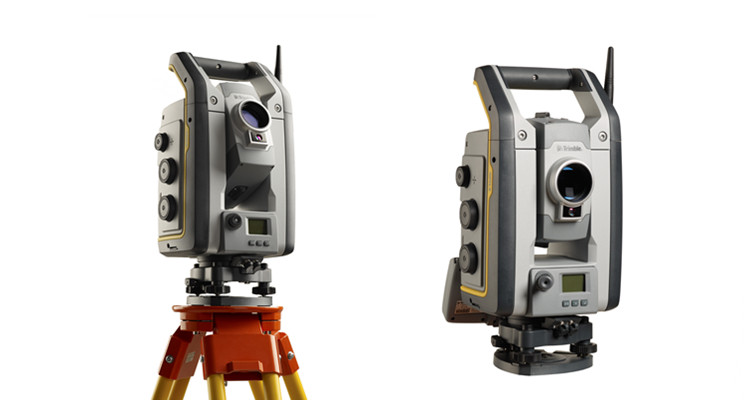

Trimble S7全站儀
回到辦公室,可信賴的Trimble Business Center軟件能夠幫助您在一套軟件解決方案中檢查、處理和平差您的光學數據和GNSS數據。
- 最具生產效率的全站儀 Trimble? S7全站儀將掃描、成像和測繪組合到一套解決方案中?,F(xiàn)在,您在作業工地只需要一臺儀器,便可捕獲所有數據。通過Trimble S7、Trimble Access?外業軟件和Trimble Business Center內業軟件,創建3D模型、高精度可視工地文檔、點云,還有更多。
- 性能角度測量傳感器類型................................................................帶對徑讀數的絕對編碼器精度(基于DIN 18723的標準偏差).......1" (0.3 mgon)、2" (0.6 mgon)、3" (1.0 mgon) 或 5" (1.5 mgon)顯示(最小讀數) .................................................................0.1”(0.01 mgon)自動水準補償器類型..................................................................................雙軸置中精度..........................................................................0.5”(0.15 mgon)范圍.......................................................................±5.4’(±100 mgon)距離測量精度(ISO)棱鏡模式標準1...........................................................................1 mm + 2 ppm精度(RMSE)棱鏡模式標準............................................................................2 mm + 2 ppm跟蹤............................................................................4 mm + 2 ppmDR模式標準............................................................................2 mm + 2 ppm跟蹤............................................................................4 mm + 2 ppm擴展測程.......................................................................10 mm + 2 ppm測量時間棱鏡模式標準.....................................................................................1.2秒跟蹤.....................................................................................0.4秒DR模式標準.....................................................................................1-5秒跟蹤.....................................................................................0.4秒測程棱鏡模式5, 6單棱鏡.................................................................................2,500米單棱鏡長測程模式.............................................................5,500米(最長測程)最短可能測程.............................................................................0.2米
DR模式
反射箔片(20毫米)......................................................................1,000米
最短可能測程..............................................................................1米DR擴展測程模式白色卡(90%反射)3......................................................................2,200米掃描范圍2, 3..............................................................................1米–250米速度4...............................................................................可達15點/秒最小點間隔...............................................................................10毫米標準偏移.......................................................................1.5毫米 @ ≤50米單3D點精度...................................................................10毫米 @ ≤150米EDM規格參數(DR PLUS)光源...............................................................脈沖激光二極管905nm,1類激光光束發散度水平..................................................................................2cm/50m垂直..................................................................................4cm/50m系統規格參數水準三角基座圓水準器.........................................................................8'/2mmLC顯示屏電子雙軸水準器分辨率.....................................................0.3" (01 mgon)伺服系統MagDrive伺服技術 ...............................................內置伺服/角度傳感器電磁直接驅動旋轉速度...............................................................................115度/秒旋轉時間(正鏡至倒鏡)......................................................................2.6秒定位速度(180度)...........................................................................2.6秒制動和慢速運動...............................................................伺服驅動,無限微調對中對中系統..........................................................................Trimble 3-pin光學對中器.......................................................................內置光學對中器放大倍數/對焦距離...........................................................2.3倍/0.5米–無限遠望遠鏡放大倍數...................................................................................30倍孔徑.....................................................................................40毫米視場........................................................................26米(在100米位置處)對焦距離...........................................................................15米–無限遠照明十字線.........................................................................可變(10步長)自動對焦...................................................................................標準相機芯片.........................................................................彩色數字影像傳感器分辨率.........................................................................2048 x 1536 像素焦距.....................................................................................23毫米景深................................................................................3米–無限遠視場..............................................................................16.5°x 12.3°數字變焦....................................................................4段(1x、2x、4x、8x)曝光..............................................................................點、HDR、自動亮度.................................................................................用戶可定義影像存儲可達...................................................................2048 x 1536 像素文件格式...................................................................................JPEG壓縮率...............................................................................用戶可定義視頻數據流8..............................................................................5幀/秒電源內置電池............................................................可充電鋰電池,11.1V - 5.0Ah工作時間9一塊內置電池......................................................................大約6.5小時三塊內置電池(在多聯電池適配器內)...................................................大約20小時智能型托架(用一塊內置電池).........................................................13.5小時視頻智能型儀器工作時間4一塊內置電池..........................................................................5.5小時三塊內置電池(在多聯電池適配器內).......................................................17小時重量和尺寸儀器....................................................................................5.5公斤Trimble CU控制器........................................................................0.4公斤三角基座................................................................................0.7公斤內置電池...............................................................................0.35公斤橫軸高度................................................................................196毫米其它同軸激光指示器..........................................................................2類激光工作溫度..........................................................................–20oC~+50oC防塵防水...................................................................................IP65通訊......................................................2.4GHz,USB,串口,藍牙(Bluetooth?)10安全性...........................................................雙層密碼保護,Locate2Protect11自動鎖定和機器人型測繪自動鎖定和機器人型測程6被動棱鏡.............................................................................500–700米Trimble MultiTrack目標....................................................................800米Trimble ActiveTrack 360目標...............................................................500米自動鎖定瞄準精度(在200米位置處,標準偏差)5被動棱鏡.................................................................................<2毫米Trimble MultiTrack目標...................................................................<2毫米Trimble ActiveTrack 360目標..............................................................<2毫米最短搜索..............................................................................距離0.2米內置/外置電臺類型........................................................2.4GHz,跳頻,擴頻電臺搜索時間(典型情況下)7...................................................................2–10秒精鎖瞄準精度(在300米位置處,標準偏差)6.......................................................<1毫米到被動棱鏡測距(最短-最長)6..........................................................20米–700米最小棱鏡間隔(在200米位置處)...............................................................0.8米GPS搜索/地理鎖定GPS搜索/地理鎖定..........................................................................360度或定義的水平和垂直搜索窗口獲取解時間12............................................................................15–30秒重新獲取目標時間............................................................................<3秒測程..................................................................自動鎖定和機器人型測程限制1 標準偏差(根據ISO17123-4)。2 目標顏色、大氣條件和掃描角度將會影響測程。3 柯達灰度卡,類別編號:E1527795。4 目標的形狀、材質與顏色、網格的大小以及到目標的距離和角度將會影響速度。5 標準晴朗天氣:無霧,陰天或溫和陽光,少許熱流光。6 測距和精度取決于大氣條件、棱鏡尺寸和背景輻射。7 取決于選擇的搜索窗口尺寸。8 遠程操作,每秒0.5幀。9 在–20oC時的性能是+20oC時的75%。10 藍牙類型的核準情況視具體國家而定。11 功能和可用性取決于具體區域。12 獲得解的時間取決于解的幾何分布和GPS位置的質量。
- 天寶S7全站儀可選配:全站儀三腳架、全站儀棱鏡包/棱鏡組、全站儀對中桿、
